GARMIN STRIKER™ SERIES
STRIKER™ 4
- PART NUMBER: 010-01550-00
STRIKER™ 4 Portable Bundle
-
PART NUMBER: 010-01550-10
- Description
- Specification
- In Box
- Reviews (0)
Description

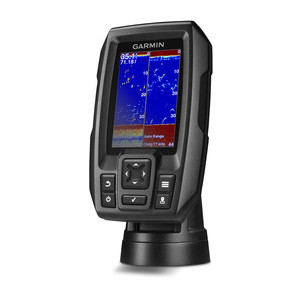

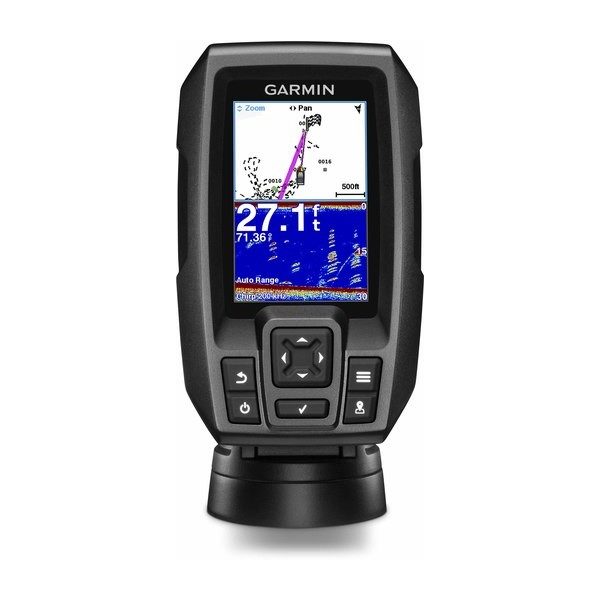

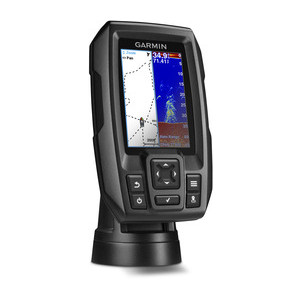

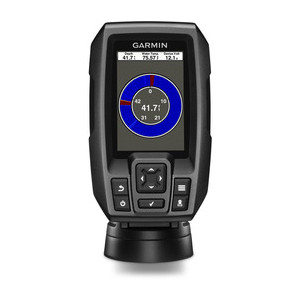

3.5-inch CHIRP Fishfinder with GPS and Portable Kit
- Easy-to-use 3.5-inch color fishfinder with built-in, high-sensitivity GPS
- Portable carrying case is perfect for kayak, canoe or ice fishing
- Find fish; mark and return to hot spots, docks and ramps
- Includes CHIRP (77/200 kHz) sonar transducer; transmit power (200 W RMS)/(1,600 W peak-to-peak)
- Upgrade to high performance CHIRP with a GT8 or GT15 transducer (each sold separately)
STRIKER 4 fishfinder with portable carrying case is perfect for fishing from a kayak or canoe and is especially handy for ice fishing. Mark and return to your hot spots, boat ramps and docks. You also can share your favorite waypoints and routes with other STRIKER and echoMAP™ chartplotter combos. Smooth Scaling™ graphics provide uninterrupted imagery when switching between depth-range scales. Sonar history rewind allows you to scroll back through sonar images to mark waypoints you originally may have missed. Includes carrying case, rechargeable battery, CHIRP (77/200 kHz) transducer and a tilt/swivel mount. For high-performance CHIRP, purchase a GT8 or GT15 transducer (each sold separately).
Experience the Clarity of CHIRP
STRIKER 4 fishfinder includes a Garmin CHIRP (77/200 kHz) transducer, which provides a visibly higher level of clarity and detail for fish and structure than traditional 77/200 kHz transducers.
Instead of sending just 1 single frequency, CHIRP sends a continuous sweep of frequencies, ranging from low to high, then interprets them individually upon their return. Since the frequencies provide a wider range of information, CHIRP sonar technology can create crisper fish arches with greater target separation.
General |
|
| Physical dimensions | 3.6” x 5.9” x 1.6” (91.6 x 150.8 x 42.8 cm) |
|---|---|
| Display size | 1.9” x 2.9” (4.9 x 7.3 cm); 3.5” diag, (8.7 cm) |
| Display resolution | 480 x 320 pixels |
| Display type | HVGA color |
| Weight | 10.8 lbs (4.9 kg) |
| Water rating | IPX7 |
Sonar Features & Specifications |
|
| Dual-frequency (50/200 kHz) sonar capable | |
|---|---|
| Dual-beam (77/200 kHz) sonar capable | |
| Frequencies supported | Traditional: 50/77/200 kHz
CHIRP (mid and high) |
| Transmit power | 200 W (RMS) |
| Maximum depth | 1,600 ft freshwater*, 750 ft saltwater* |
| Bottom lock (shows return from the bottom up) | |
| Water temperature log and graph | |
Fishfinder Features |
|
| Split-screen zoom | |
|---|---|
| Ultrascroll® (displays fish targets at higher boat speeds) | |
| Fish Symbol ID (helps identify fish targets) | |
| AutoGain Technology (minimizes clutter, maximizes targets) | |
| Adjustable depth line (measures depth of underwater objects) | |
| A-scope (real time display of fish passing through transducer beam) | |
| Water temperature sensor included | |
Additional |
|
| Additional |
|
|---|---|
*Depth capacity is dependent on water bottom type and other water conditions.
- STRIKER 4
- Dual-beam transducer
- Tilt/swivel mount
- Portable bag
- Base/handle
- Suction cup mount
- Foam float
- Kayak In-hull Transducer Mount
- Power cable
- Rechargeable battery
- AC charger
- Documentation
