Xinuo XF-520 5 inch GNSS Chart Plotter
Model：XF-520
· Support BDS, GPS dual-mode high-precision positioning.
· Support classic& utility dual operating system.
· Support multi-language display.
· Support to update software online.
- Description
- Reviews (0)
Description
✅ Key Features & Specifications
Here are some of the main specs of the XF-520, pulled from manufacturer & distributor info:

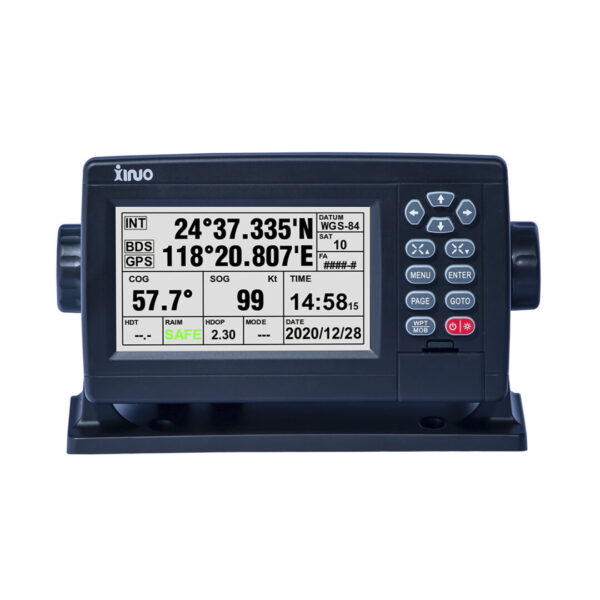

5-inch colour TFT LCD display, resolution 480 × 272 pixels.
Brightness approx. 400 cd/㎡ (so decent for daylight) and wide viewing angle.
Dual GNSS support: GPS + BDS (Beidou) positioning for higher accuracy / redundancy.
pdf.nauticexpo.com
Chart-system support: built-in “XINUO-Map” plus compatibility with C-MAP (MAX) cards for marine charts.
pdf.nauticexpo.com
Large memory & navigation capability (per one spec sheet): up to 50,000 waypoints, 50,000 markers, 500 routes (each up to ~200 waypoints), 1,000 tracks and ~1.6 million track points.

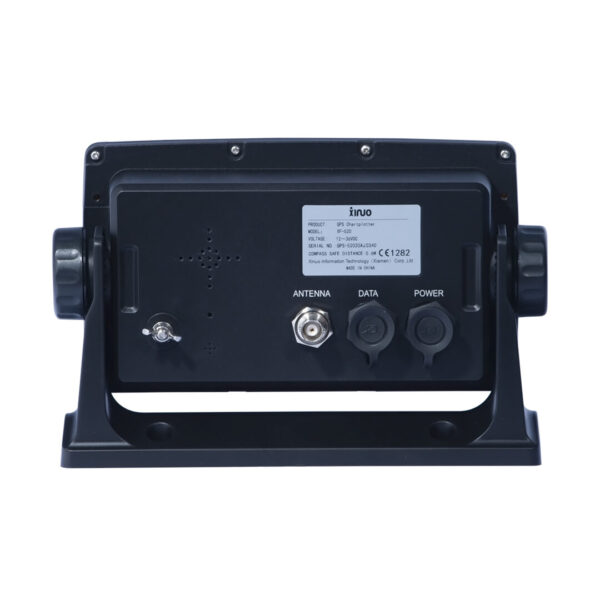

Interface & connectivity: NMEA 0183 input/output supporting integration with other marine electronics.
Environmental / mounting: Complies with IP65 waterproof standard (meaning dust tight + water jets protection) and supports flush, ceiling or panel mounting.
Power supply range: DC 10 V to 36 V (so usable on typical boat 12 V/24 V systems) according to spec sheet.
