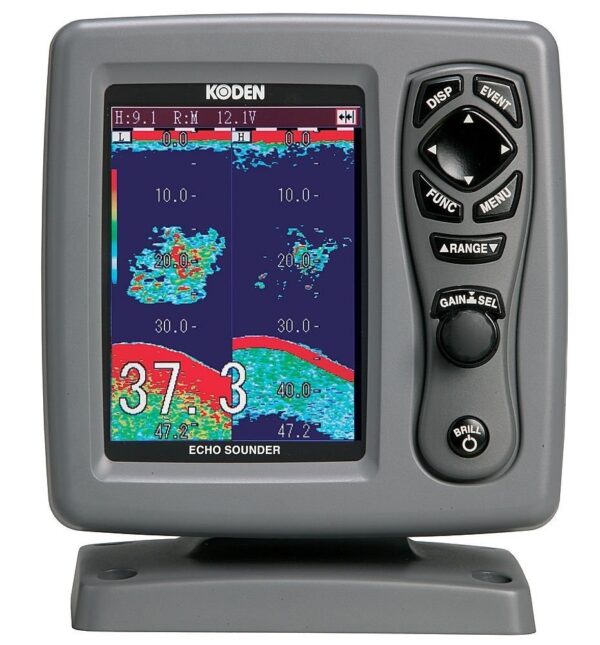

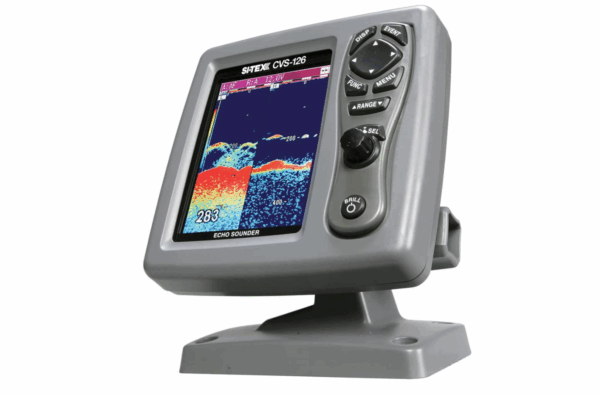

Koden CVS 126 Echo Sounder
Koden CVS-126 Digital Echo Sounder – High-Resolution, Easy-to-Use Fish Finder
The Koden CVS-126 is a compact yet powerful digital echo sounder designed to deliver crystal-clear underwater images in both shallow and deep waters. Powered by advanced digital signal processing technology, it ensures high-resolution readings, superior target separation, and reliable performance for all fishing conditions.
Whether you’re a recreational angler or a commercial operator, the CVS-126 makes fish detection and navigation easier than ever with smart features and rugged design.
- Description
- Reviews (0)
Description
🔍 Key Features & Benefits
🎯 Digital Signal Processing (DSP)
Automatically adjusts for high resolution in shallow water and strong gain in deeper areas
Delivers consistently clear sonar images in varying depths and conditions
🖼️ Image Storage with GPS Capability
Store up to 10 sonar images for later review
Optional GPS sensor integration lets you save the exact location with each stored image
🔊 Sona-Tone – Audible Fish Detection
Alerts you with a sound when individual fish or schools are detected
Lets you fish more efficiently without constantly watching the screen
⚙️ Automatic Operation
Simple to use with auto GAIN, RANGE, and SHIFT functions
Allows beginners and pros alike to operate with ease
📺 Bright & Durable 5.7-Inch LCD Display
High-contrast screen ensures excellent visibility in daylight
IPX5 water-resistant and drip-proof, ideal for open bridge installations
💡 Energy-Efficient Design
Uses low-power white LED backlighting
Perfect for boats needing to conserve battery life
🛥️ Ideal For
Coastal and inshore fishing
Recreational anglers and small commercial vessels
Installations on center consoles and open bridges
Main Specifications
Main functions Zoom, Auto, A-scope, Presentation colors: 64, 16, 8 colors, Store image, Fishing Hot Spot, Sona-Tone
Basic range 2.5 to 800 Meter/ Fathom/ Italian Fathom
10 to 2800 Feet
Output power (RMS) 600 W
Output frequency Dual 50/200 kHz
Water protection IPX5
Dimensions 208(H) x 182(W) x 130(D) mm
Weight 1.3 kg
Power supply 10.8 to 31.2 VDC
