Description

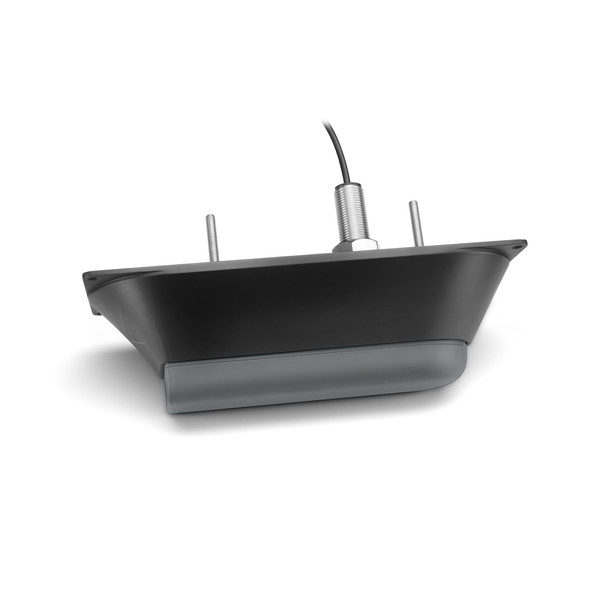

Perfect for the coastal and offshore fisherman who want traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar in a stainless steel stem, this thru-hull mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.
The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 5 degrees.
GT41-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
General |
|
| Frequency | Traditional (50/200 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) |
|---|---|
| Power | Traditional 600 W; ClearVü/SideVü 500 W |
| Beamwidth | Traditional (40/10); ClearVü/SideVü (2.0 @ 260 kHz) & (1.4 @ 455 kHz) |
| Maximum depth | Traditional: 1,500 ft.; ClearVü: 1,000 ft.; SideVü: 750 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 5 ft. + 30 ft. extension cable |
| Supported deadrise/Transom angles | Up to 5° deadrise |
