Description

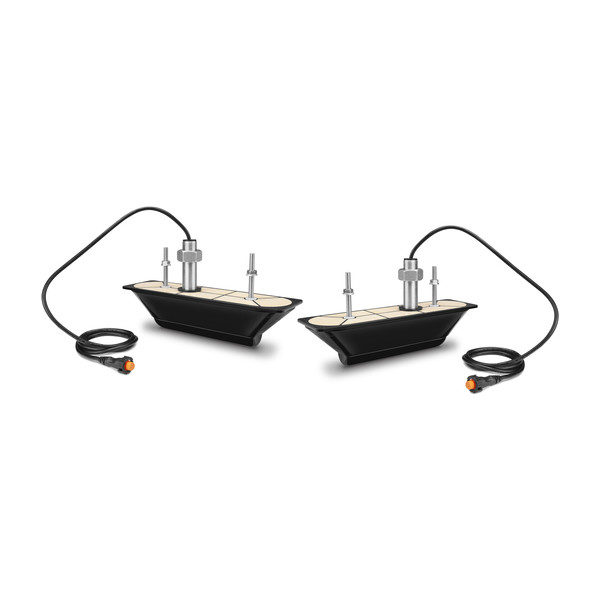

Ultra High-Definition Sonar System Thru-hull Pair Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.
Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
Ultra High-Definition SideVü Scanning
See stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
General |
|
| Frequency | Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz |
|---|---|
| Power | 500 W |
| Beamwidth | Ultra High-Defintion ClearVü: 0.74° x 46°
Ultra High-Defintion SideVü: 0.44° x 55° |
| Maximum depth | 200′ Ultra High-Definition ClearVü
125′ to each side Ultra High-Definition SideVü, 250′ total, at a maximum depth of 30′ |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 20 ft. |
| Supported deadrise/Transom angles | Up to 25° deadrise |
