Part Number: 010-12465-00
Inquiry

Description

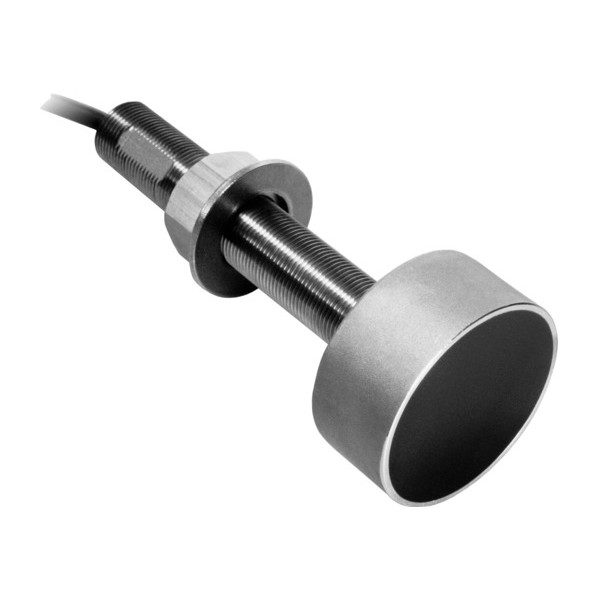

This impact-resistant, stainless steel thru-hull stem can be used on all hulls, including plaining hull powerboats and displacement hull boats. The dual frequency version provides good target detail in shallow water at 200 kHz and good deep water bottom tracking at 50 kHz. The narrow beam 200 kHz version provides excellent bottom detail. Airmar’s high performance fairings are recommended for all installations to obtain the best possible performance.

General
Frequency 50/200 kHz
Power 600 W
Beamwidth 45/12
Maximum depth 800-1,200 ft.
Depth/Speed/Temperature Depth and Temperature
Number of pins 8-pin
Cable length 30 ft.
Supported deadrise/Transom angles 0° degree deadrise

Physical Dimensions

  • Frequency: 50/200 kHz
  • Cone: 45°/12°
  • Depth & temperature:
  • Maximum depth range: 50 kHz, 235 m to 353 m (800′ to 1,200′); – 200 kHz, 118 m to 206 m (400′ to 700′)
  • Boat size: 9 m (30′) and up
